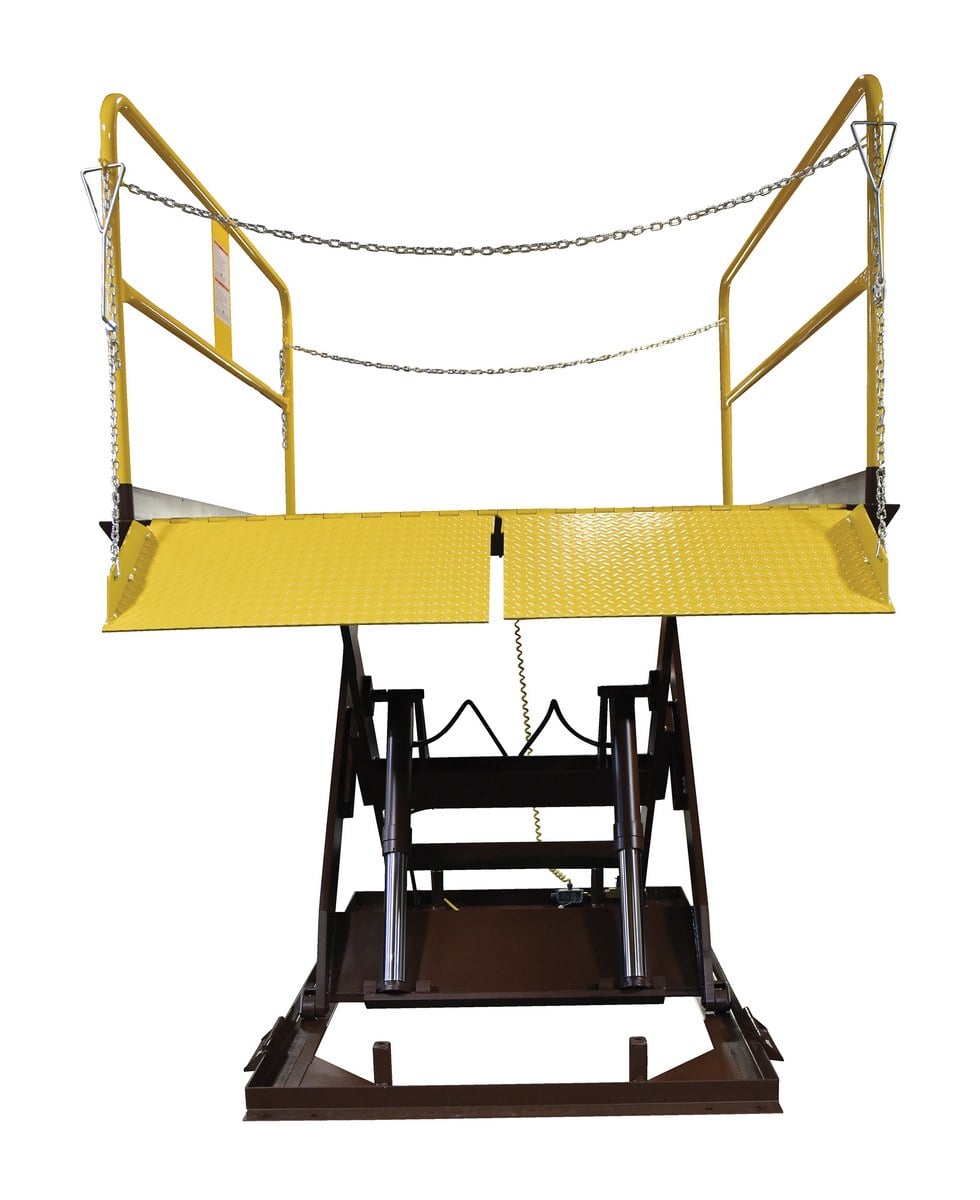

Hydraulic Dock Lift
/ ea.
Platform W x L
HWL-100-5-68
Platform W x L - 72 x 96
Wt. (lbs.) - 2,902#
Lowered Hgt. - 8 In
Lift Raised Hgt. - 68 In
Frame Size W X L - 62 x 93 In
HWL-100-5-610
Platform W x L - 72 X 120
Wt. (lbs.) - 3,823#
Lowered Hgt. - 8 In
Lift Raised Hgt. - 68 In
Frame Size W X L - 62 x 118 In
HWL-100-5-78
Platform W x L - 84 x 96
Wt. (lbs.) - 3,059#
Lowered Hgt. - 8 In
Lift Raised Hgt. - 68 In
Frame Size W X L - 62 x 93 In
HWL-100-5-710
Platform W x L - 84 X 120
Wt. (lbs.) - 4,027#
Lowered Hgt. - 8 In
Lift Raised Hgt. - 68 In
Frame Size W X L - 62 x 118 In
HWL-100-5-48
Platform W x L - 48 x 96
Wt. (lbs.) - 2,362#
Lowered Hgt. - 8 In
Lift Raised Hgt. - 68 In
Frame Size W X L - 41 x 93 In
HWL-100-5-810
Platform W x L - 96 X 120
Wt. (lbs.) - 4,107#
Lowered Hgt. - 8 In
Lift Raised Hgt. - 68 In
Frame Size W X L - 62 x 118 In
HWL-100-5-88
Platform W x L - 96 X 96
Wt. (lbs.) - 3,952#
Lowered Hgt. - 8 In
Lift Raised Hgt. - 68 In
Frame Size W X L - 86 x 93 In
Platform W x L
HWL-100-6-68
Platform W x L - 72 x 96
Wt. (lbs.) - 3,198#
Lowered Hgt. - 10 In
Lift Raised Hgt. - 70 In
- 62 x 93 In
HWL-100-6-610
Platform W x L - 72 x 120
Wt. (lbs.) - 3,939#
Lowered Hgt. - 10 In
Lift Raised Hgt. - 70 In
- 62 x 118 In
HWL-100-6-78
Platform W x L - 84 x 96
Wt. (lbs.) - 3,496#
Lowered Hgt. - 10 In
Lift Raised Hgt. - 70 In
- 62 x 93 In
HWL-100-6-710
Platform W x L - 84 x 120
Wt. (lbs.) - 4,038#
Lowered Hgt. - 10 In
Lift Raised Hgt. - 70 In
- 62 x 118 In
POSTAL-6-68
Platform W x L - 72 x 96
Wt. (lbs.) - 3,396#
Lowered Hgt. - 10 In
Lift Raised Hgt. - 70 In
HWL-100-6-88
Platform W x L - 96 x 96
Wt. (lbs.) - 4,172#
Lowered Hgt. - 10 In
Lift Raised Hgt. - 70 In
- 86 x 93 In
HWL-100-6-810
Platform W x L - 96 x 120
Wt. (lbs.) - 4,301#
Lowered Hgt. - 10 In
Lift Raised Hgt. - 70 In
- 86 x 118 In
Platform W x L
HWL-100-8-68
Platform W x L - 72 X 96
Wt. (lbs.) - 4,396#
Lowered Hgt. - 10 In
Lift Raised Hgt. - 70 In
Frame Size W X L - 62 x 93 In
HWL-100-8-610
Platform W x L - 72 X 120
Wt. (lbs.) - 4,807#
Lowered Hgt. - 10 In
Lift Raised Hgt. - 70 In
Frame Size W X L - 62 x 118 In
HWL-100-8-78
Platform W x L - 84 X 96
Wt. (lbs.) - 4,592#
Lowered Hgt. - 10 In
Lift Raised Hgt. - 70 In
Frame Size W X L - 62 x 93 In
HWL-100-8-710
Platform W x L - 84 X 120
Wt. (lbs.) - 4,193#
Lowered Hgt. - 10 In
Lift Raised Hgt. - 70 In
Frame Size W X L - 62 x 118 In
HWL-100-8-88
Platform W x L - 96 X 96
Wt. (lbs.) - 4,698#
Lowered Hgt. - 10 In
Lift Raised Hgt. - 70 In
Frame Size W X L - 86 x 93 In
HWL-100-8-810
Platform W x L - 96 X 120
Wt. (lbs.) - 5,157#
Lowered Hgt. - 10 In
Lift Raised Hgt. - 70 In
Frame Size W X L - 86 x 118 In
Platform W x L
HWL-100-10-68
Platform W x L - 72 x 96
Wt. (lbs.) - 5,804#
Lowered Hgt. - 14 In
Lift Raised Hgt. - 72 In
Frame Size W X L - 62 x 93 In
HWL-100-10-610
Platform W x L - 72 x 120
Wt. (lbs.) - 6,037#
Lowered Hgt. - 14 In
Lift Raised Hgt. - 72 In
Frame Size W X L - 62 x 118 In
HWL-100-10-612
Platform W x L - 72 x144
Wt. (lbs.) - 6,504#
Lowered Hgt. - 14 In
Lift Raised Hgt. - 72 In
Frame Size W X L - 62 x 118 In
HWL-100-10-78
Platform W x L - 84 x96
Wt. (lbs.) - 5,991#
Lowered Hgt. - 14 In
Lift Raised Hgt. - 72 In
Frame Size W X L - 62 x 93 In
HWL-100-10-710
Platform W x L - 84 x120
Wt. (lbs.) - 6,224#
Lowered Hgt. - 14 In
Lift Raised Hgt. - 72 In
Frame Size W X L - 62 x 118 In
HWL-100-10-712
Platform W x L - 84 x144
Wt. (lbs.) - 6,690#
Lowered Hgt. - 14 In
Lift Raised Hgt. - 72 In
Frame Size W X L - 62 x 118 In
HWL-100-10-88
Platform W x L - 96 x 96
Wt. (lbs.) - 6,177#
Lowered Hgt. - 14 In
Lift Raised Hgt. - 72 In
Frame Size W X L - 86 x 93 In
HWL-100-10-810
Platform W x L - 96 x120
Wt. (lbs.) - 4,562#
Lowered Hgt. - 14 In
Lift Raised Hgt. - 72 In
Frame Size W X L - 86 x 118 In
HWL-100-10-812
Platform W x L - 96 x 144
Wt. (lbs.) - 6,876#
Lowered Hgt. - 14 In
Lift Raised Hgt. - 72 In
Frame Size W X L - 86 x 118 In
Platform W x L
HWL-100-12-68
Platform W x L - 72 x 96
Wt. (lbs.) - 6,387#
Lowered Hgt. - 14 In
Lift Raised Hgt. - 72 In
Frame Size W X L - 62 x 93 In
HWL-100-12-612
Platform W x L - 72 x 144
Wt. (lbs.) - 7,098#
Lowered Hgt. - 14 In
Lift Raised Hgt. - 72 In
Frame Size W X L - 62 x 118 In
HWL-100-12-78
Platform W x L - 84 x 96
Wt. (lbs.) - 6,573#
Lowered Hgt. - 14 In
Lift Raised Hgt. - 72 In
Frame Size W X L - 62 x 93 In
HWL-100-12-710
Platform W x L - 84 X 120
Wt. (lbs.) - 6,807#
Lowered Hgt. - 14 In
Lift Raised Hgt. - 72 In
Frame Size W X L - 62 x 118 In
HWL-100-12-712
Platform W x L - 84 x 144
Wt. (lbs.) - 7,225#
Lowered Hgt. - 14 In
Lift Raised Hgt. - 72 In
Frame Size W X L - 62 x 118 In
HWL-100-12-810
Platform W x L - 96 x 120
Wt. (lbs.) - 6,993#
Lowered Hgt. - 14 In
Lift Raised Hgt. - 72 In
Frame Size W X L - 86 x 118 In
HWL-100-12-610
Platform W x L - 72 X 120
Wt. (lbs.) - 6,620#
Lowered Hgt. - 14 In
Lift Raised Hgt. - 72 In
Frame Size W X L - 62 x 118 In
HWL-100-12-88
Platform W x L - 96 x 96
Wt. (lbs.) - 6,731#
Lowered Hgt. - 14 In
Lift Raised Hgt. - 72 In
Frame Size W X L - 86 x 93 In
HWL-100-12-812
Platform W x L - 96 x 144
Wt. (lbs.) - 7,436#
Lowered Hgt. - 14 In
Lift Raised Hgt. - 72 In
Frame Size W X L - 86 x 118 In
7HP-OPT
Description - 7 1/2 HP OPTION 230/460V 3PH 6 GAL / MIN PUMP
10HP-OPT
Description - 10 HP OPTION 230/460V 3 PHASE -8 GAL/MIN PUMP
WL-3SP
Description - Single Phase 3HP 208/230 V Option
WL-TSP
Description - Two Speed Pump for 55% faster lift
WL-GALV
Description - Galv Coating For Washdown Application
WL-FDA
Description - FDA Approved Coating for Incidental Food Contact
WL-XBRIDGE-S
Description - 72 x 18 Steel Bridge [order this to get one for each end ]
WL-RBRIDE-A
Description - Upcharge To change the bridge included from steel to aluminum
WL-XBRIDGE-A
Description - 72 x 18 additional Aluminum Bridge
WL-AR8
Description - 60 w x 65 L Ramp for 8 in Lowered Height units
WL-AR-10
Description - 60 w x 82 L Ramp for 10 in Lowered Height units
WL-AR14
Description - 60 w x 116 L Ramp for 14 in Lowered Height units
WL-AWC
Description - Automatic Wheel Chock - Prevents roll off
WL-WK
Description - Molility Kit - FOR 6 x 8 ONLY
WL-50
Description - 50K# Capacity Rollover Capacity
WL-RMB
Description - Reservoir Mounting - When Pump Can't be on the ground - required with mobile units
-
Product Details

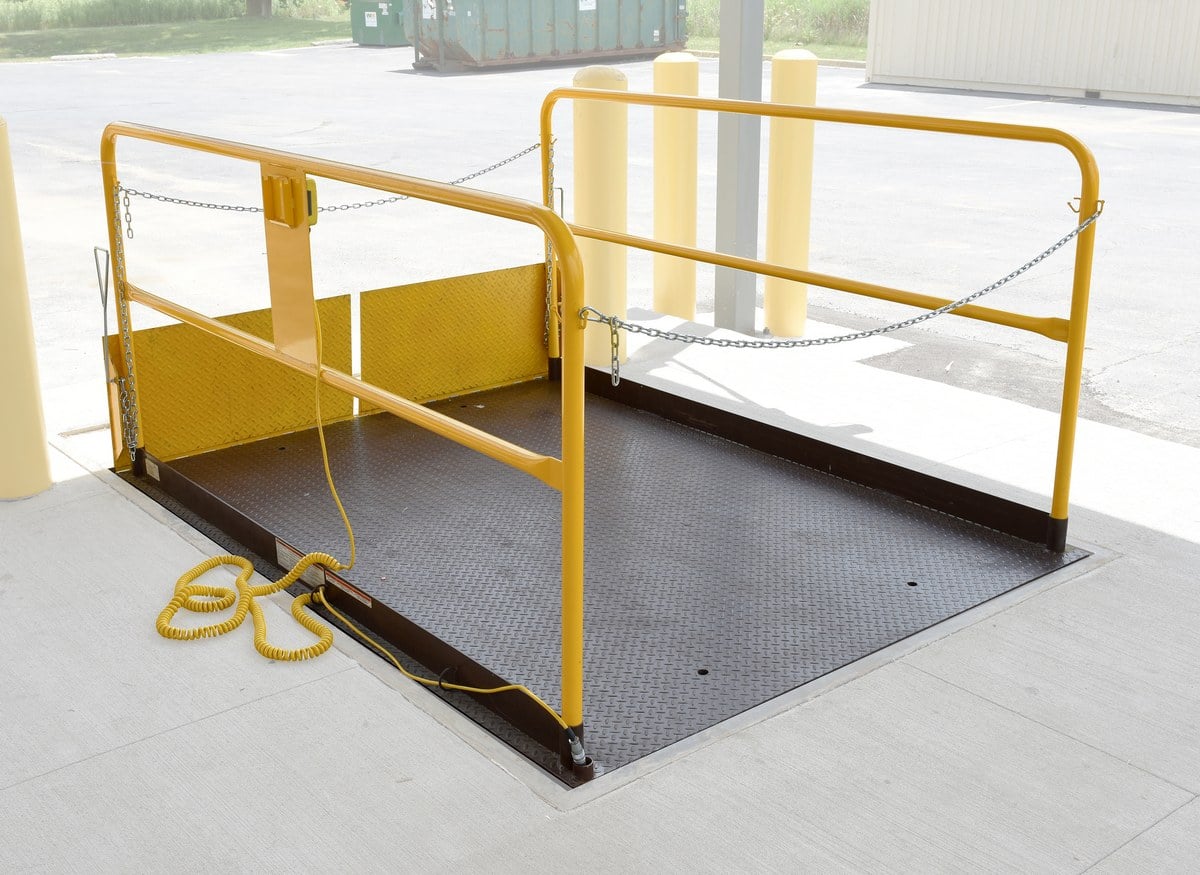

- Load and unload trucks without a dock with this hefty scissors lift.
- Engineered for maximum safety and efficiency.
- Available with a whole range of options
- Can be upgraded to Aluminum bridge
- Hydraulic cylinders include emergency velocity fuse if the hose breaks
- Includes pre-wired control box with Magnetic Starter and overload fuse
- Comes standard with a 6.5HP 460V 3 PH 60 HZ motor - that can be located as much as 8 feet away from the unit
- Other Power options available
- Has excellent safety features - like the electric toe guard. DO NOT remove safety devices
- For outdoor use - consider the glavanized dock lift
- See below for the site survey fork and the installation an owners manual
-
